Party Walls

ICYMI: The code change proposals for the 2021 IECC are open for voting by Governmental Member Voting Representatives (GMVR) from Monday, November 18^th through Friday, December 6^th, and your vote is instrumental in making buildings consume less energy! [Need a quick refresher on the code process? Check out our blog post here!]

Does your vote even matter?

Overall, there are not actually that many voters on a given proposal. In the energy proposals, last cycle, it ranged from about 200-400 voters per proposal, even though there were a total of 1,247 voters on the Group B codes, which includes the IECC.



So a small handful of voters can entirely shape the future of the energy codes that dictate how energy efficient our buildings will be! If history repeats itself, while some online voters tend to align with the Committee, many online voters align their votes with those cast by their fellow ICC voters at the Public Comment Hearings. This happened 81% of the time in 2016. Unlike 2016, in this cycle all the electronic votes cast during the Public Comment Hearings will be rolled into the online vote tally (although those voters can still change their vote).

(more…)

SWA’s Enclosure Group is acutely aware that insulation is the most important single material choice to maximize the enclosure’s thermal resistance over its operational life. Many of us in the building industry believe that, combined with a good continuous air seal, the highest insulation value makes the greenest enclosure, helping to reduce a structure’s carbon footprint and combat climate change. It may come as a surprise, then, that some of the most commonly used insulation materials are so carbon-heavy to manufacture and/or install, that for many decades they wipe away the carbon-energy savings they are supposed to provide.  The following is a detailed discussion of how and why this is, and what the industry is doing to change the equation.

Embodied vs. Operational Carbon

The built environment looms large in the climate picture, because almost 40% of the total carbon put into the planet’s atmosphere each year is attributed to buildings. Over the past 30 years of green building, we have overwhelmingly focused on operational carbon – the carbon that buildings emit as they are being used. Only recently have we begun to focus on embodied carbon – the carbon that goes into constructing buildings, which is typically far greater than the energy saved in the first decades of operation. Changes in energy codes are aimed at operational carbon, and even those organizations and standards that have been at the forefront of promoting sustainable building [LEED, PH] have not been quantifying or limiting embodied carbon, although they bring attention to it.

The Time Value of Carbon

Assuming that a building stands for many decades, or even centuries, its operational carbon will eclipse its embodied carbon over its lifetime, and therefore when the building’s carbon Life Cycle Assessment (LCA) is calculated, operational carbon savings will be more important than embodied carbon saved/spent in the long run. Why does embodied carbon deserve equal weight with operational carbon? Because of the total global carbon emissions from buildings, 28% is pegged to embodied carbon. That’s already a large percentage, but when you consider the near term, the first 30 years of a building’s life, the percentage jumps to about 50%. In effect, every new building is in carbon debt upon completion due to the huge amount of carbon emitted  in order to construct it., And in order for the climate to benefit from the energy savings provided by a well-insulated and sealed enclosure and a high efficiency energy system, the building needs to last and be used for a very long time. The problem is that we may not have 30 years, let alone 60, to pay off that carbon debt.

(more…)

District of Columbia Mayor, Muriel Bowser, signed a landmark piece of legislation known as the Clean Energy DC Omnibus Amendment Act this past Friday. With the mayor’s signing, Washington, DC becomes one of the first jurisdictions in the country with a binding, comprehensive law aimed at reducing greenhouse gas emissions. “It allows us to make significant improvements to the energy efficiency of existing buildings in the District,” Mayor Bowser said at the signing ceremony.

The new law has several sections which will impact the buildings in which DC residents and businesses live and work. In this post, we’re going to focus on Title III of the Clean Energy Omnibus Amendment Act, which is designed to make the city’s existing buildings more efficient.

(more…)

As mentioned in Foundation Waterproofing 101, water damage to a foundation can be very costly and difficult to repair. By paying close attention to how and where water might enter the foundation during the early stages of construction, typical failures can be avoided by following these simple guidelines…

For the Designer: Keys to proper installation

Design and Quality Assurance

• Don’t wait to design the foundation waterproofing system after you’re already in the ground!
• Specify and detail the appropriate system for each project. Meet with manufacturer reps early!
• Require shop drawings and kickoff meetings to ensure the entire team understands the importance of the design! Review examples of common failures.
• Get your consultants on board early: Geotechnical engineer, Structural engineer, Waterproofing/enclosure consultant.
• Review warranties, require third party inspections, installer certification, and contractor training.

For the Installer: Keys to proper installation

Substrate preparation

• Provide smooth continuous surfaces to install waterproofing – minimize jogs, protrusions, and sharp edges.
• At slabs: compacted fill/rigid insulation board/rat slabs
• At walls: fill bugholes, remove/grind concrete fins, mortar snots, fill form tie holes, verify form release agents and compatibility.

(more…)

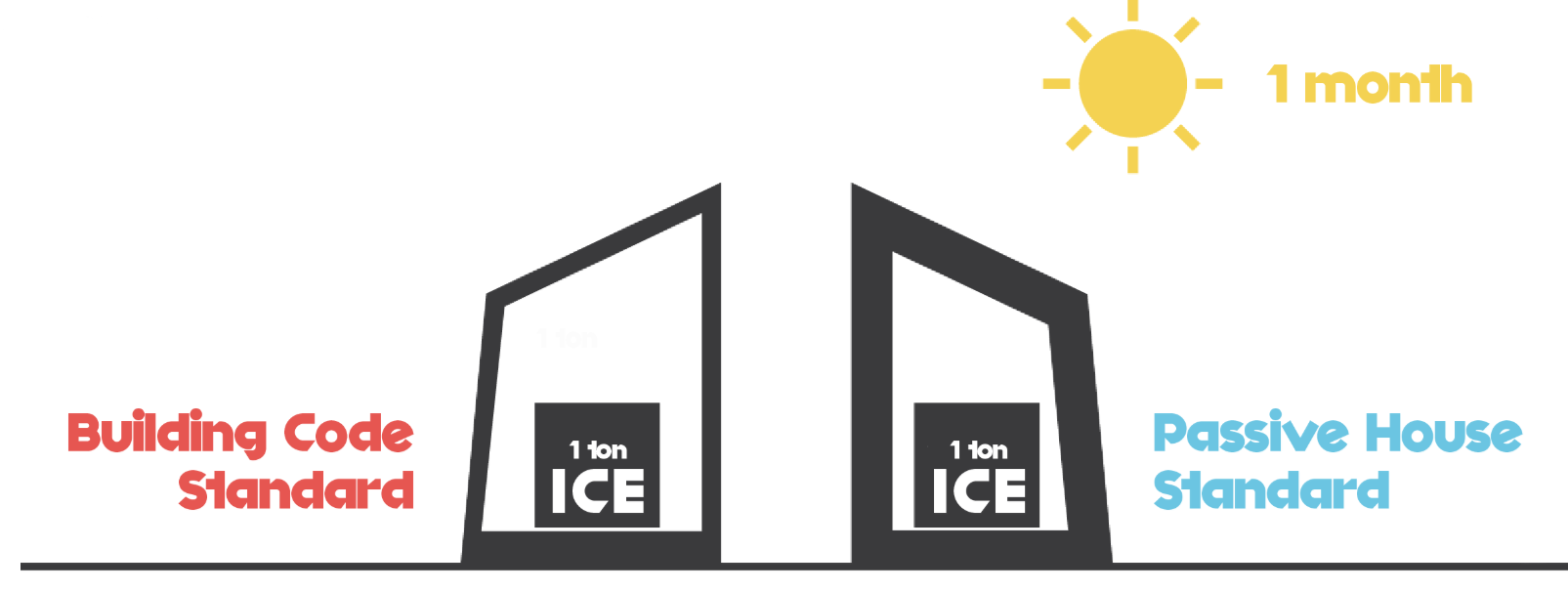

On April 21, 2018, two blocks of ice weighing exactly one ton each were placed into what appeared to be identical sheds in Times Square. The purpose? To measure how much each block would melt over a 30-day period, ultimately demonstrating the efficacy of Passive House construction methods.

The first shed, or Ice Box, was built to meet current NYC Building Code standards, which lack stringent requirements for building envelope performance. The second was constructed using building principles adopted from the Passive House Standard, including the utilization of high performance building materials, a superior airtight building envelope with advanced insulation, and triple-pane windows.

After 30 days of exposure, the Ice Boxes were publicly unveiled, and the results were exactly what building professionals had anticipated. The block of ice contained in the Ice Box constructed to NYC Building Code resulted in a final weight of 126 pounds, while the block of ice within the Passive House Ice Box weighed an astonishing 756 pounds, retaining 42% of its mass!

So, What Did We Learn… (more…)

It’s October and a burgeoning category 3 hurricane is forecasted to make its way up the East Coast within the coming week. Somehow this all seems familiar.

It’s been 3 years since Superstorm Sandy came ashore in the New York Metro Area. Much of the damage has been repaired and structures rebuilt, but have we done enough to mitigate the impact of a similar catastrophe? I think we can all agree that likely, we have not. However, progress has been made, and at SWA, we have been working hard over the past 3 years to improve the strength of our buildings through providing resiliency assessments and remediation planning. It’s not a fix-all for the region, but it has helped some buildings to implement upgrades that might make a big difference in the next week. (more…)
